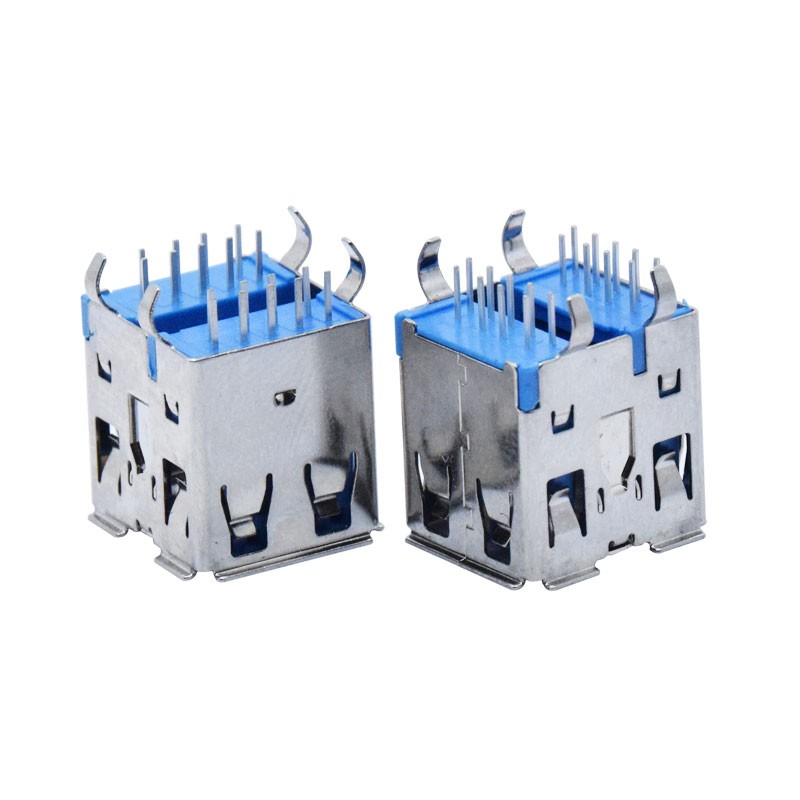

Component Type: Receptacle
Standerd: USB 3.0
Type: A
Transmission rate: 5 Gpbs
Number of Ports: 2
Number of Contacts: 18 Pin, 4 Beveled Metal Pins
Edge: Straight / Curl
Orientation: Vertical
Mounting Feature: Board Lock
Termination Interface Style: Through Hole
Current Rating (Amps): 3A/5A
Voltage Rated: 12V
Color: Blue Housing
MPN: USBR-USB30-0110

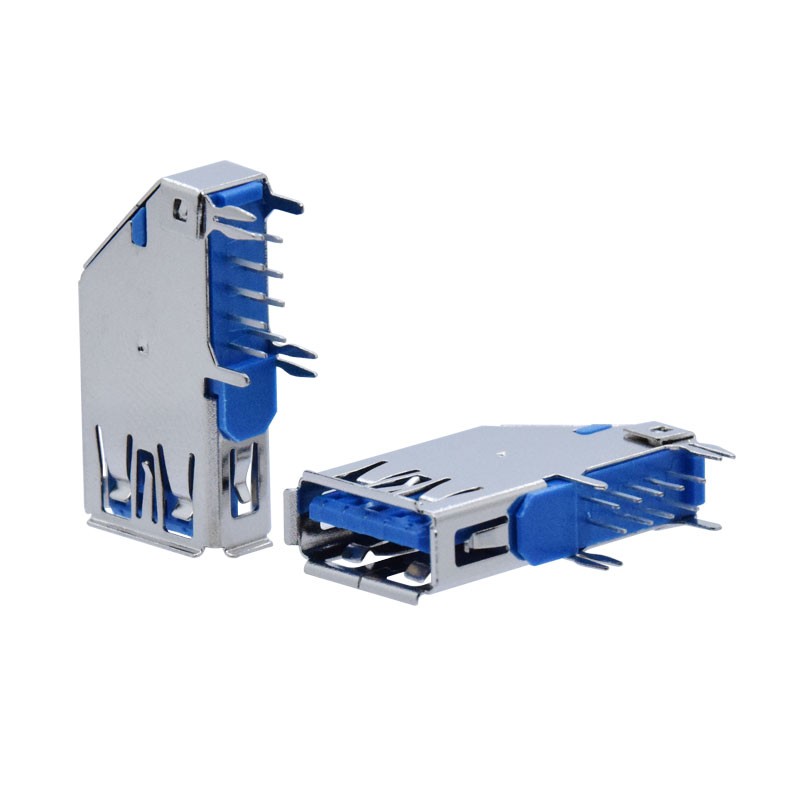

Component Type: Receptacle
Standerd: USB 3.0
Type: A
Transmission rate: 5 Gpbs
Number of Contacts: 9 Pin, 4 Positioning Peg
Edge: Straight / Curl
Orientation: Right Angle
Mounting Feature: Upright, Board Lock
Termination Interface Style: Through Hole
Current Rating (Amps): 3A/5A
Voltage Rated: 12V
Shell Material: Stainless Steel
Color: Blue Housing
MPN: USBR-USB30-0109

Component Type: Receptacle
Standerd: USB 3.0
Type: A
Transmission rate: 5 Gpbs
Number of Contacts: 10 Pin
Ground Pin Position: Center
Edge: Straight / Curl
Orientation: Vertical
Mounting Feature: Single Side Soldering Wire
Termination Interface Style: Through Hole
Current Rating (Amps): 3A/5A
Voltage Rated: 5V
Plastic: LCP
Shell Material: Copper, Iron or Other
Color: Blue High Temperature Housing
MPN: USBR-30AF-F05-1
