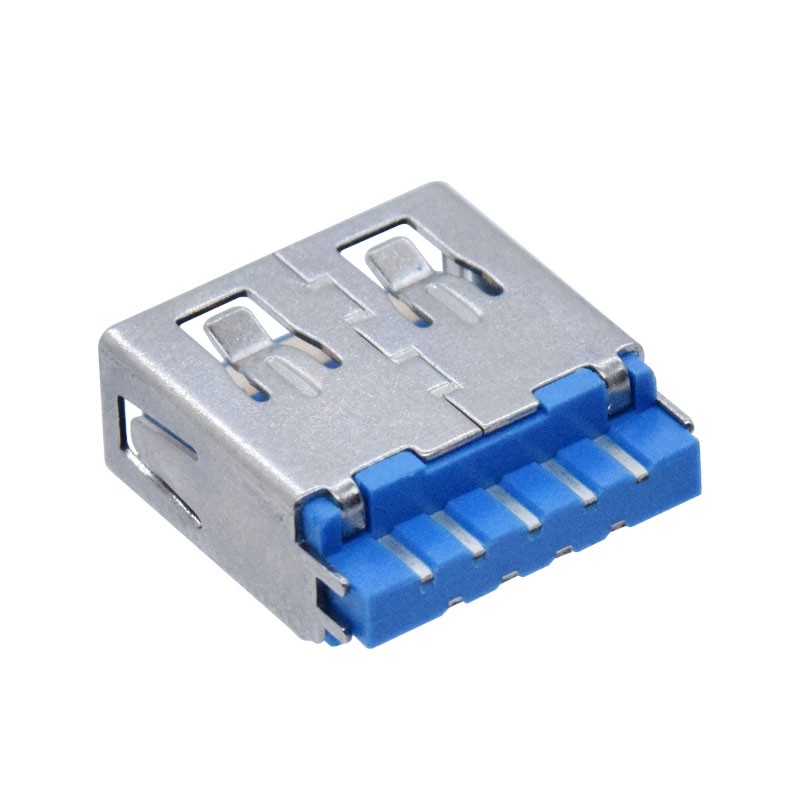

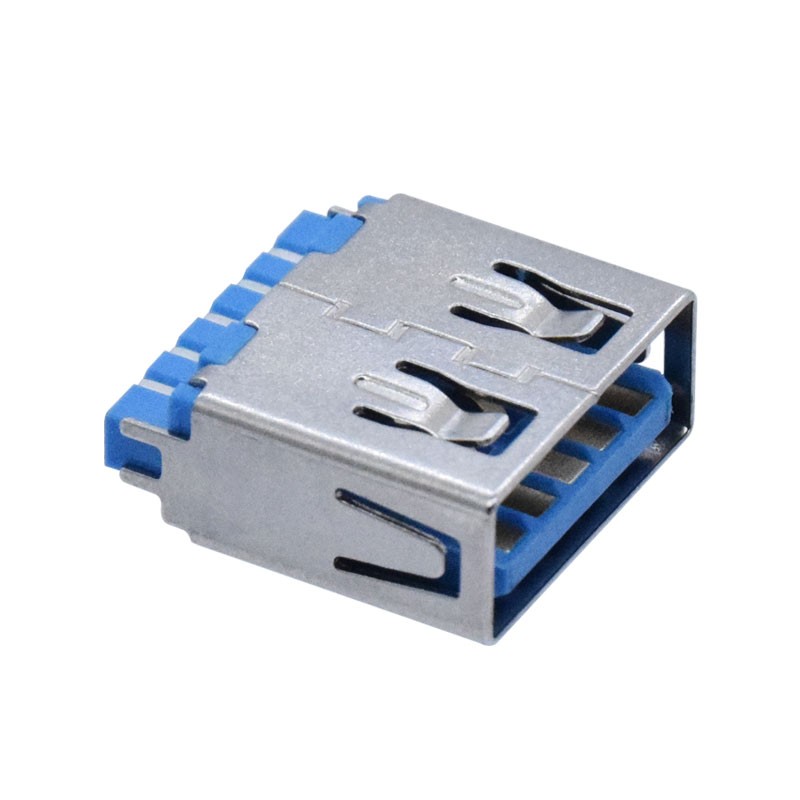

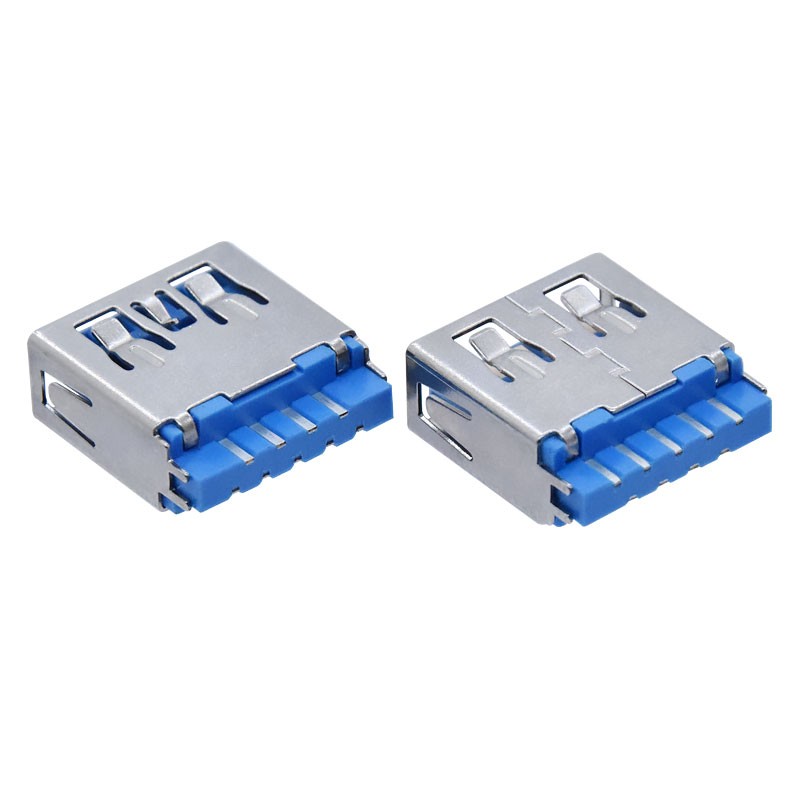

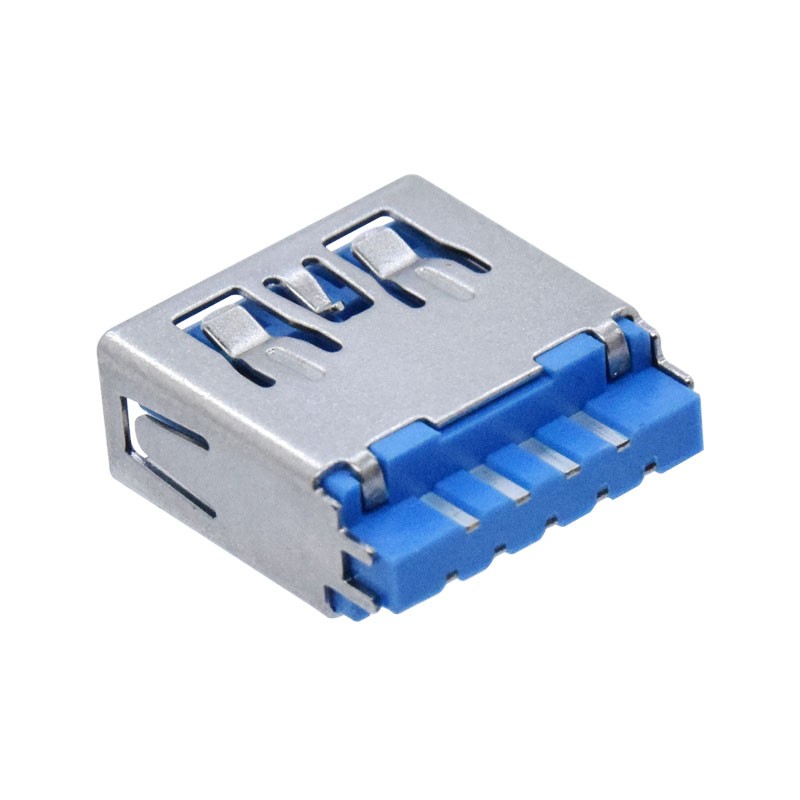

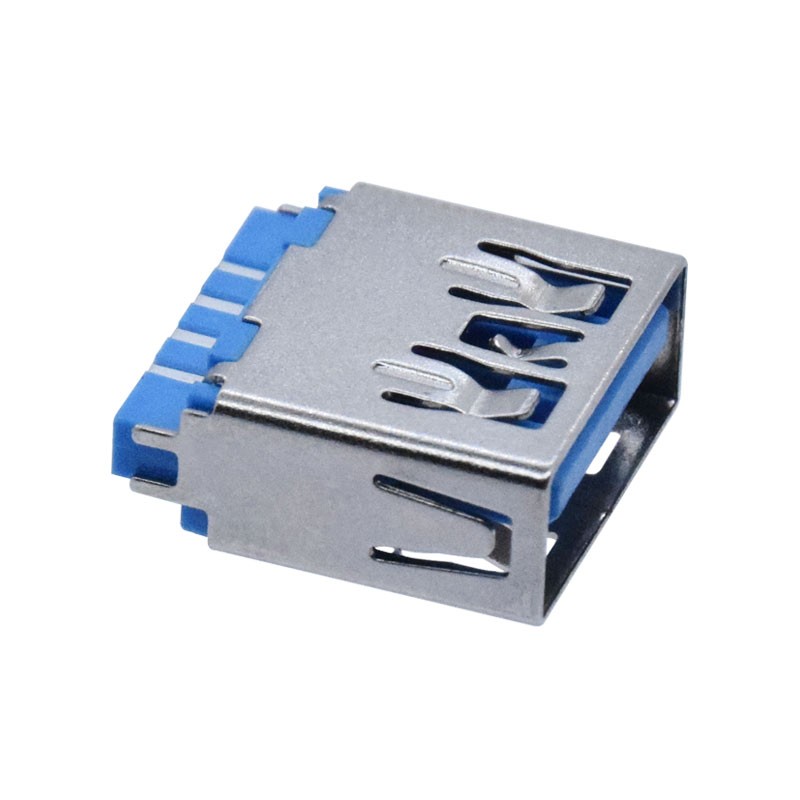

Length 11.5 USB 3.0 Type A Female

introduce：
Component Type: Receptacle
Standerd: USB 3.0
Type: A
Transmission rate: 5 Gpbs
Number of Contacts: 9 Pin
Connector Spring: Yes
Edge: Straight / Curl
Orientation: Vertical
Mounting Feature: Straddle Mount, Dual Side Soldering Wire
Termination Interface Style: Through Hole
Current Rating (Amps): 3A/5A
Voltage Rated: 5V
Shell Material: Copper, Iron or Other
Color: Blue Housing
Length: 11.5mm
MPN: USBR-30AF-F05-1

Product details

Product display

【labels】：USB 3.0 Type A Female USB 3.0 A Socket for Adapter Cable USB 3.0 A Receptacle for Converter

I want to customize：Length 11.5 USB 3.0 Type A Female
