Product Name

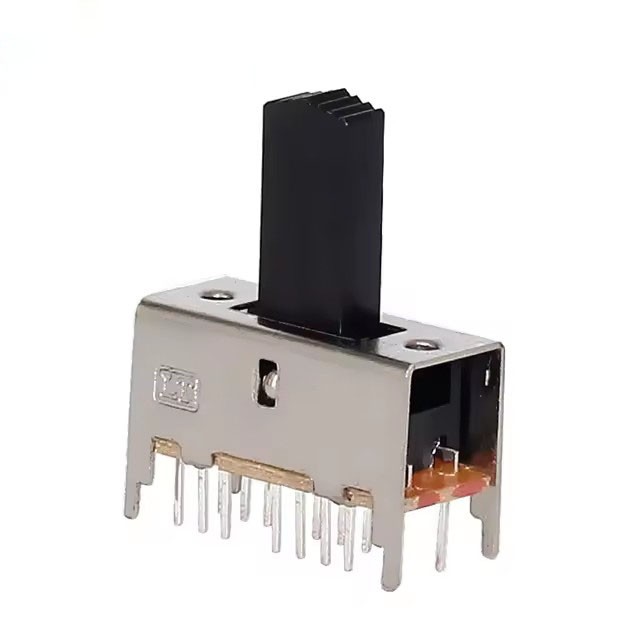

Toggle switch SS43D01 double row 3 position 16 pins slide switch
Environment temperature
-25°C~85°C
Withstand Voltage
AC250V(50Hz)/min
Rated load
0.5A/12VDC
Insulation Resistance
>100 MΩ
Contact Resistance
≤50mΩ
Product Life
10,0000 Cycles
Operation Force
160gf;250gf;300gf;400gf; can customized as your request.
Slide Switch Height
The slide switch height can be 4.3/4.5/5/5.5/6/7/8/9/10mm;also can customized as your request.
