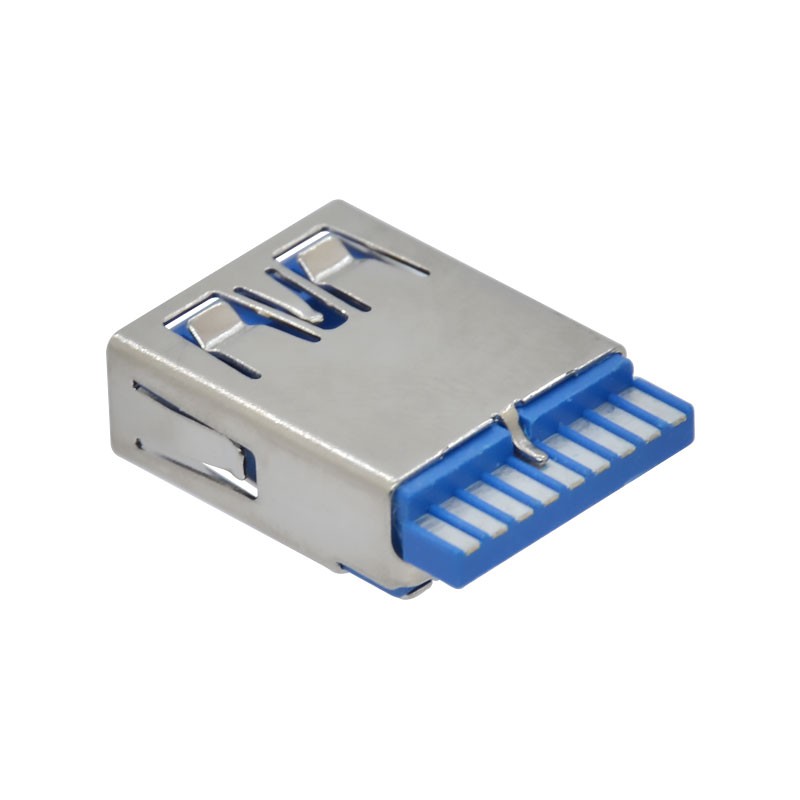

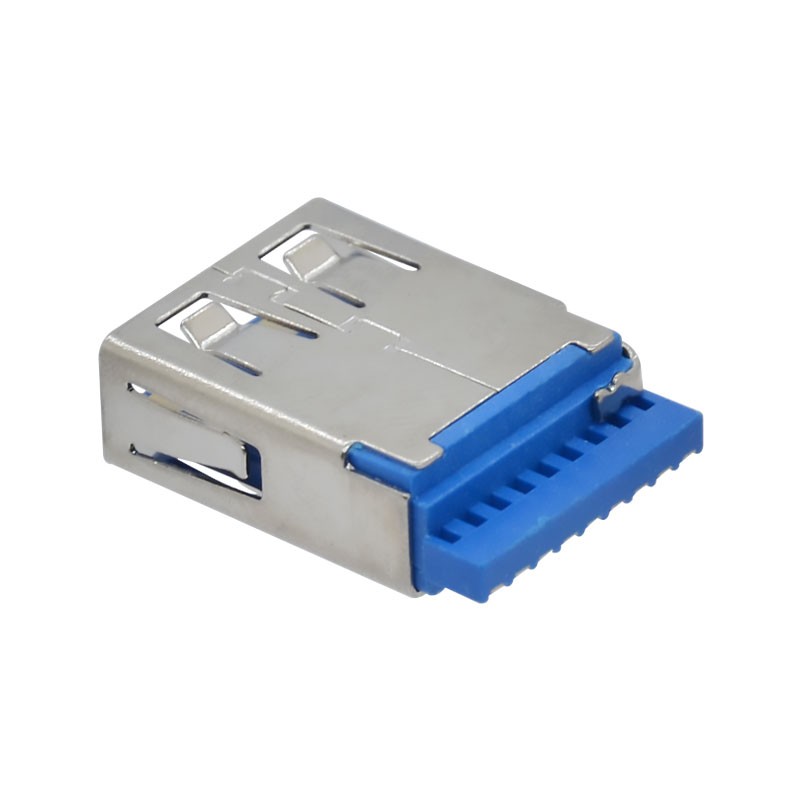

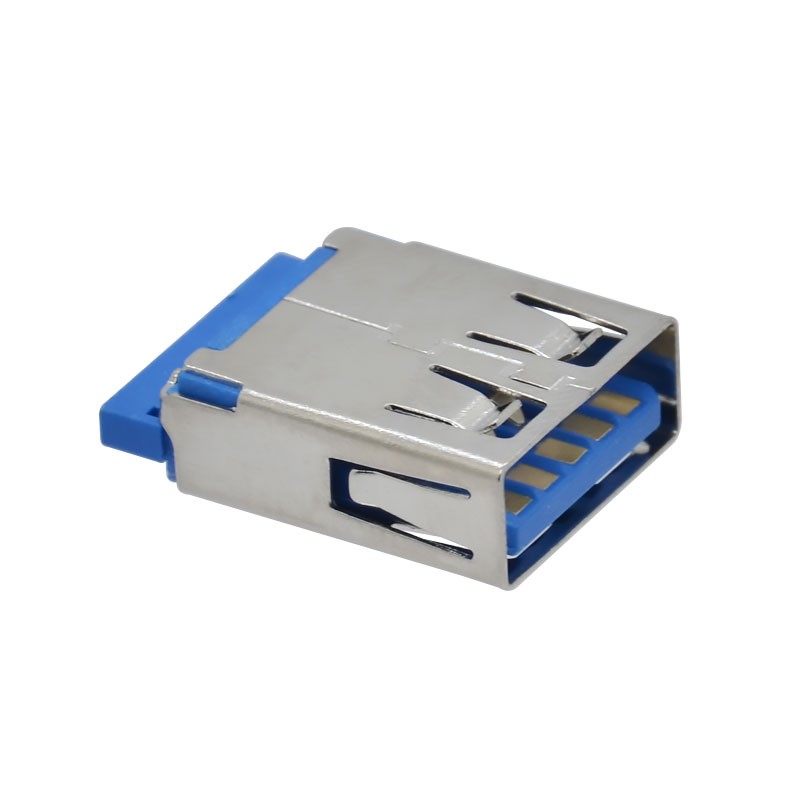

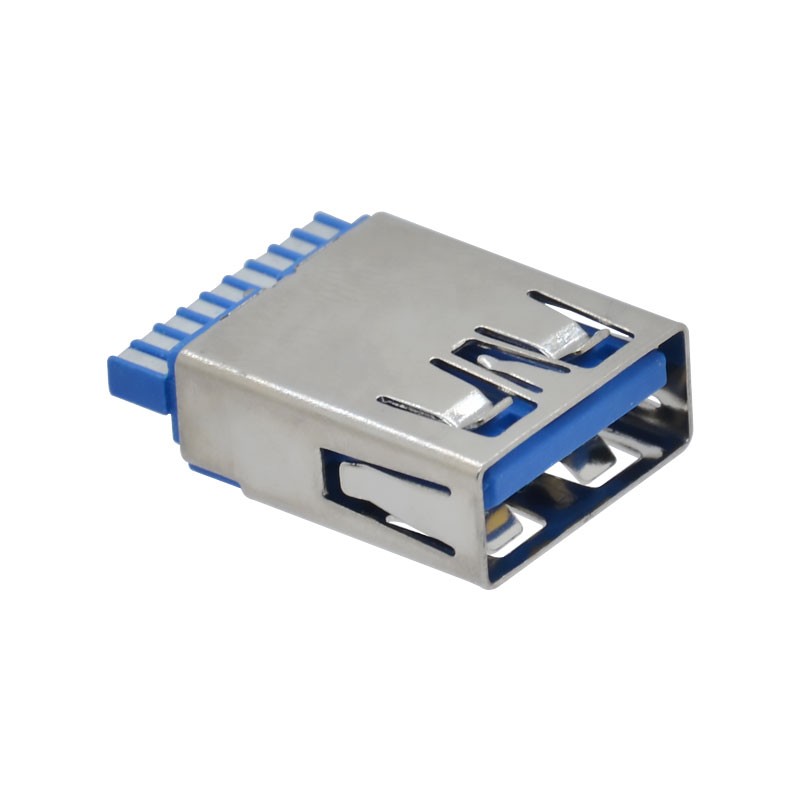

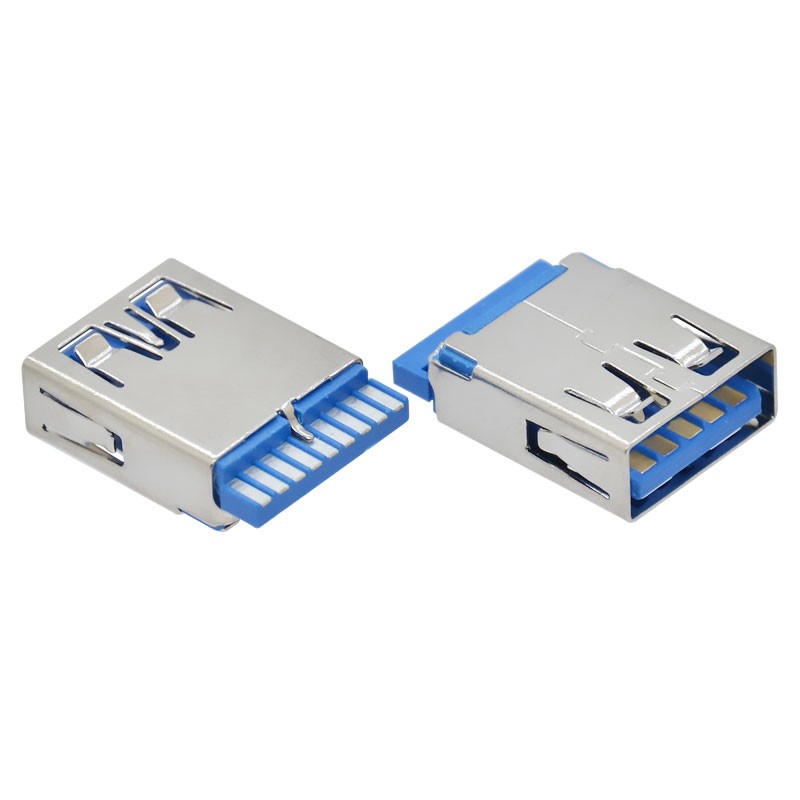

Solder 10P USB 3.0 Type A Female

introduce：
Component Type: Receptacle
Standerd: USB 3.0
Type: A
Transmission rate: 5 Gpbs
Number of Contacts: 10 Pin
Ground Pin Position: Center
Edge: Straight / Curl
Orientation: Vertical
Mounting Feature: Single Side Soldering Wire
Termination Interface Style: Through Hole
Current Rating (Amps): 3A/5A
Voltage Rated: 5V
Plastic: LCP
Shell Material: Copper, Iron or Other
Color: Blue High Temperature Housing
MPN: USBR-30AF-F05-1

Product details

Product display

【labels】：USB 3.0 Female Connector USB A Receptacle for Industrial camera USB 3.0 for Power bank

I want to customize：Solder 10P USB 3.0 Type A Female

*Contact person：
*Mobile phone：
Company name：
*Email：
*Purchase intention：
*Verification code：

Related Products

: 6 x 9 SMT illuminate Tactile Button Switches Gull Wing 6 Pin 6*9mm SMD Push Tact Switch with

Place of Origin Guangdong, China Brand Name USBERR Model Number USBR0633-1-15.5H26010-G
Learn More

: IPX8 Mid Mount Micro USB 5P

Component Type: Receptacle
Standard: Micro USB 3.0
Number of Contacts: 5 Pin, 2 Met...
Learn More

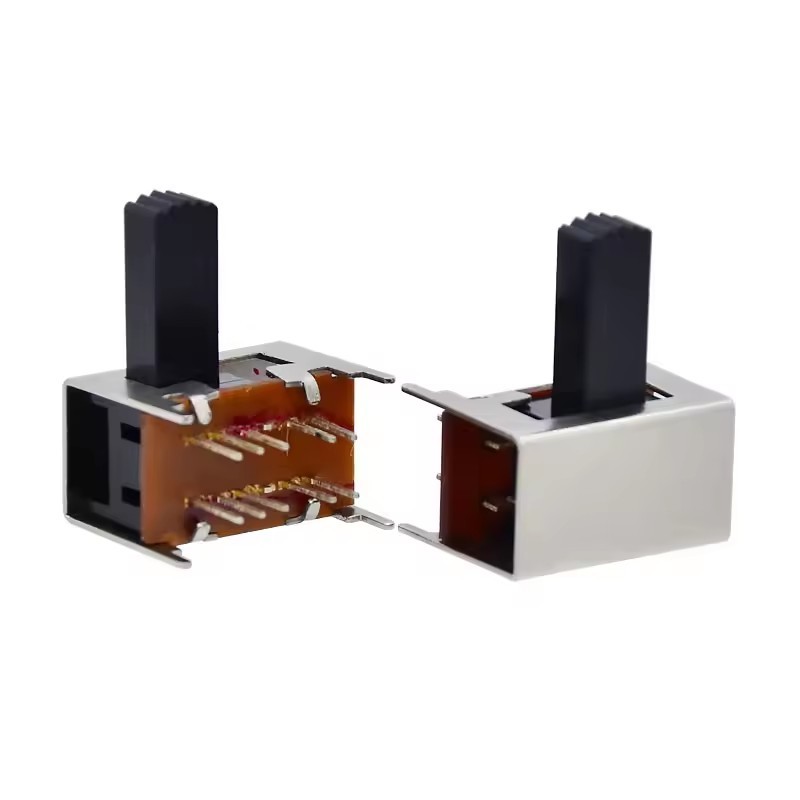

: SK22F07 SMT Slide Switches 2 Ways DPDT RG 6 Pin 0.5A 30V Right Angle 2D2T Mini Toggle Switch
