Product characteristics
?USB2.0 full speed compatible
?FT232RQ chip on board, support FTDI drivers
?Pinout: TXD,RXD,CTS,RTS,VCC,GND
?UARt interface support 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
?Data transfer rate from 300 baud to 3 Mbaud
?Internal EEPROM with users writable area.
?Signal levels: +3.3v or +5v version
?Support FT232R FTDICHIP-ID feature for improve security.
?Powered by USB directly, no extra power required
?Low USB bandwidth consumption
?-40?~+85?operation temperature.
The converter is USB to TTL serial UART converter PCB, integrating FTDI FT232RL USB to serial UART interface IC which handles all the USB signals and protocols. The converter offers a small, fast way to connect device with a TTL(5v or 3.3v) level serial interface to USB. It has two version for both signal levels: +5v level and +3.3v level.
The converter is USB powered and USB2.0 full speed compatible. It supports a data transfer rate up to 3Mbaud and support the FTDICHIP-ID, with a unique USB serial number programmed into the PCB.
The converter required USB drivers, available from http://www.ftdichip.com, which are used to make the FT232R on the PCB appear as virtual COM port(VCP). This then allows users to communicate with the USB interface via a standard PC serial emulation port. Another FTDI USB driver is D2XX driver, can also be used with application software to directly access the FT232R on the PCB though a DLL
?FT232RQ chip on board, support FTDI drivers
?Pinout: TXD,RXD,CTS,RTS,VCC,GND
?UARt interface support 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
?Data transfer rate from 300 baud to 3 Mbaud
?Internal EEPROM with users writable area.
?Signal levels: +3.3v or +5v version
?Support FT232R FTDICHIP-ID feature for improve security.
?Powered by USB directly, no extra power required
?Low USB bandwidth consumption
?-40?~+85?operation temperature.
The converter is USB to TTL serial UART converter PCB, integrating FTDI FT232RL USB to serial UART interface IC which handles all the USB signals and protocols. The converter offers a small, fast way to connect device with a TTL(5v or 3.3v) level serial interface to USB. It has two version for both signal levels: +5v level and +3.3v level.
The converter is USB powered and USB2.0 full speed compatible. It supports a data transfer rate up to 3Mbaud and support the FTDICHIP-ID, with a unique USB serial number programmed into the PCB.
The converter required USB drivers, available from http://www.ftdichip.com, which are used to make the FT232R on the PCB appear as virtual COM port(VCP). This then allows users to communicate with the USB interface via a standard PC serial emulation port. Another FTDI USB driver is D2XX driver, can also be used with application software to directly access the FT232R on the PCB though a DLL
FT232RQ features
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.

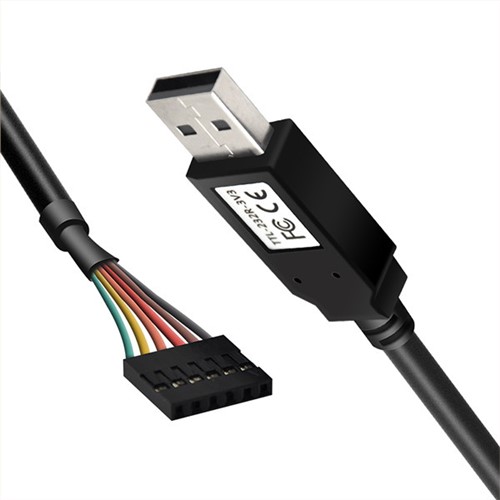

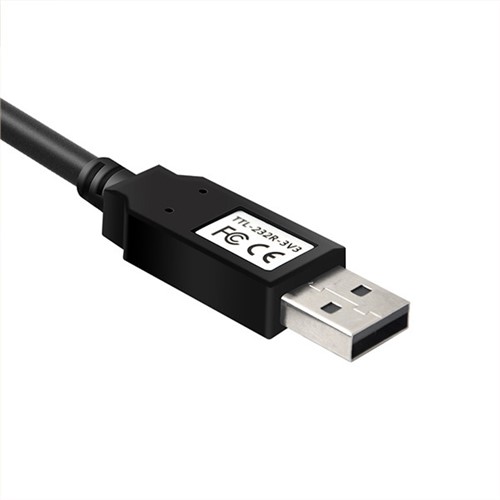

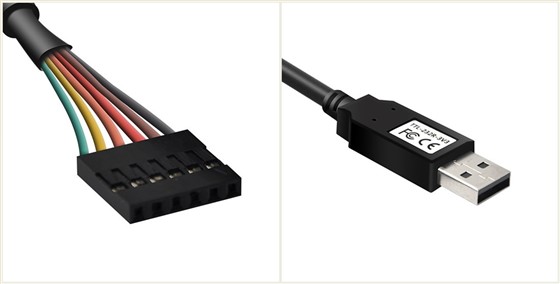

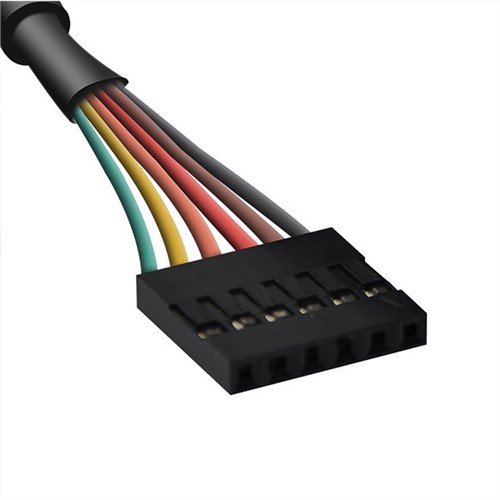

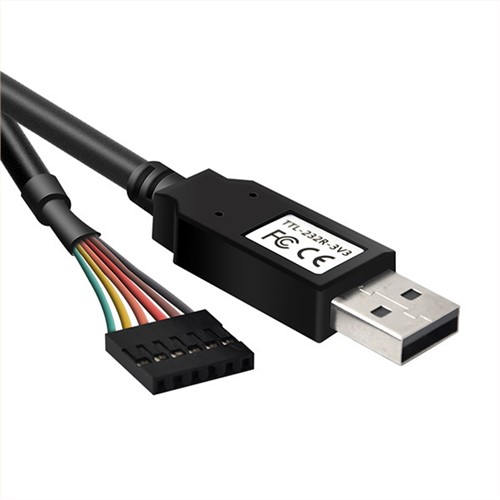

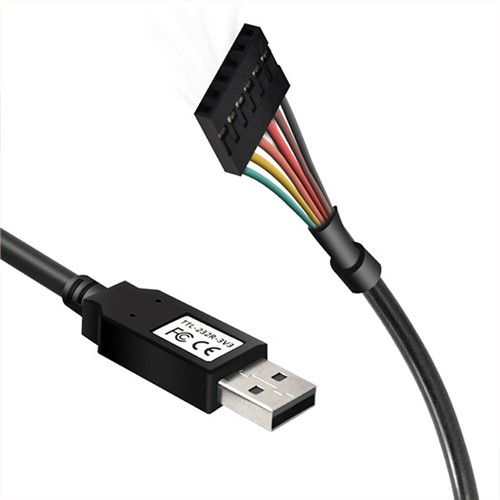

Product display
